Section 07 produced a tuned production model at models/p5_03_production/. Section 08 wraps that model in a FastAPI service on port 8001 and stands it next to the baseline API on port 8000. Same input fields. Different decisions. Visible in real time.

The headline insight from this section: the same 8-field request that the baseline calls LEGITIMATE, the tuned API calls FRAUD - and that flip is exactly the +$10,925 Net Benefit we picked up in Section 07, now serving over HTTP.

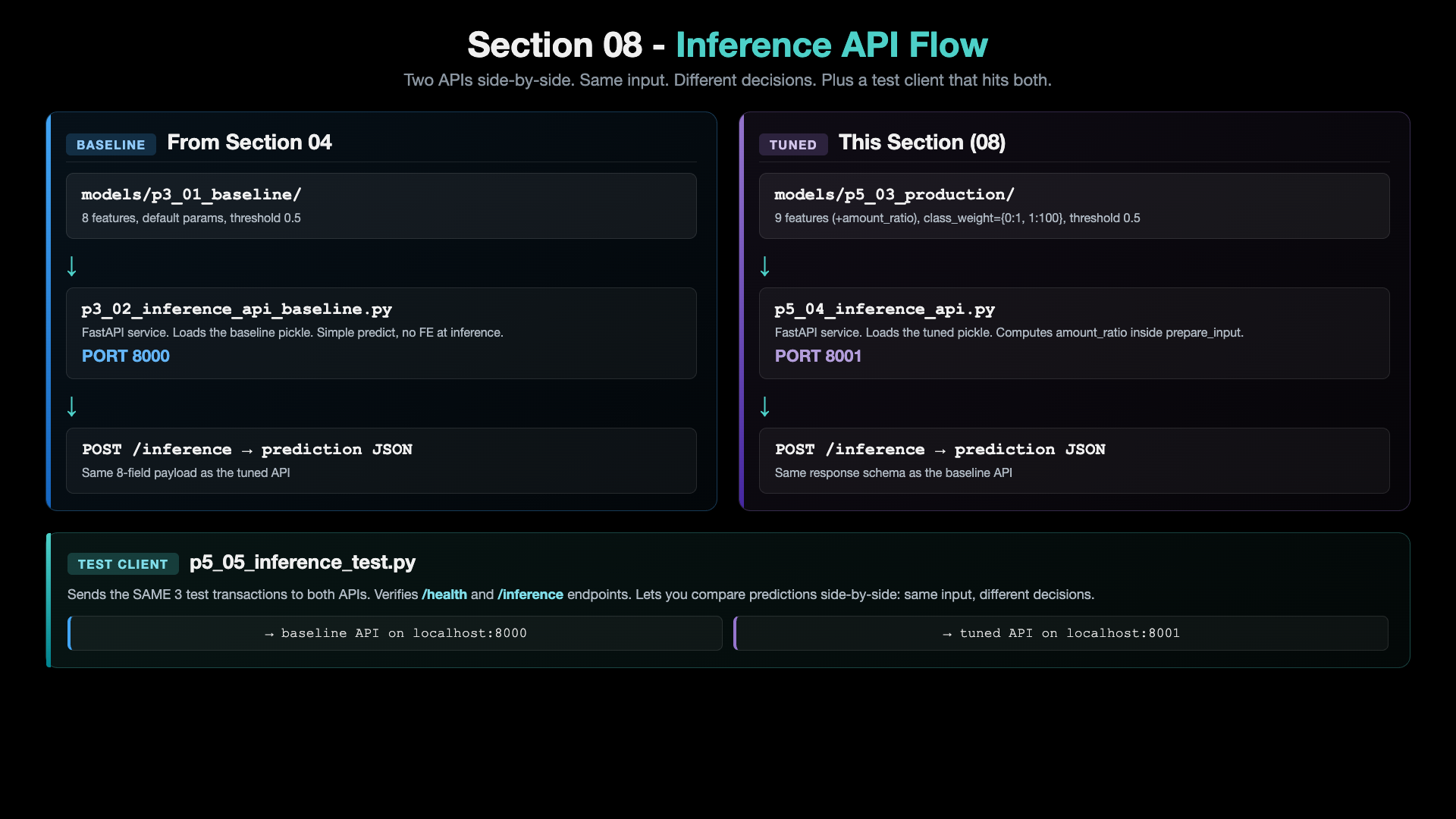

Architecture: Section 08 Flow¶

Baseline vs Tuned API¶

The 2-Script Story Arc¶

Section 08 is one folder with two new p5_* scripts (plus the carry-forward scripts from earlier sections). Each new script has its own README explaining what it does, how to run it, and what output to expect.

The baseline API (p3_02_inference_api_baseline.py) and baseline test client (p3_03_inference_test_baseline.py) come along from Section 04 unchanged. You run both APIs in parallel to compare.

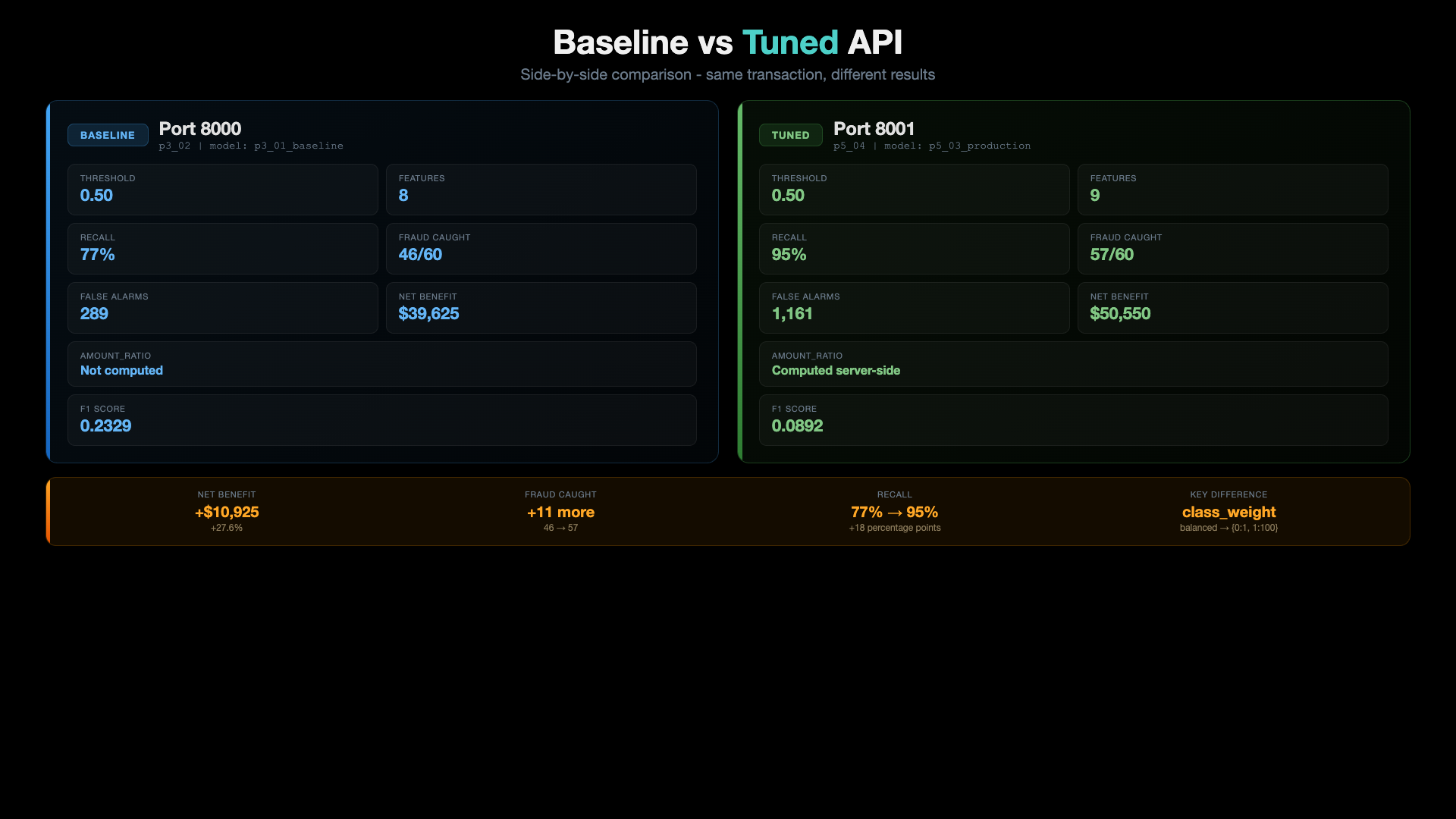

The Two APIs Side by Side¶

Two things to notice:

1. Threshold is 0.5 for both. The tuned model gets its aggressiveness from class_weight, not from a lowered threshold. No threshold magic at predict time.
2. The tuned API computes amount_ratio server-side from transaction_amount / avg_transaction_amount. Same 8 raw input fields hit both APIs.

Endpoints (identical on both APIs)¶

Real Numbers: Baseline vs Tuned (test set, seed=42)¶

The tuned model has a worse F1 and 4x more false alarms - but the dollars don't lie. Each caught fraud nets +$1,475 and each missed fraud costs -$1,500, so trading 872 extra $25 false alarms for 11 more caught frauds is the right call. This is the same trade-off Section 07 proved on offline data - now you watch it happen over HTTP.

Pre-requisite: Python Environment Setup¶

# Create conda environment (only once)
conda create -n mlops-env1 python=3.14 -c conda-forge -y

# Activate environment
conda activate mlops-env1

# Install dependencies
cd ccfd-project
pip install -r requirements.txt

All sections in this course use the same mlops-env1 environment. You only need to create it once.

How to Run (full path: train → serve → test)¶

# Make sure mlops-env1 is active
conda activate mlops-env1

cd 08_Tuned_Inference_API/ccfd-project

# One-time data + model setup (skip if files already exist)
python p1_01_generate_initial_dataset.py     # generate 10k synthetic transactions
python p4_01_feature_engineering_fe1.py      # add amount_ratio feature
python p3_01_train_model_baseline.py         # train the 8-feature baseline model
python p5_02_class_weight_gridsearch.py      # find best class_weight (saves config JSON)
python p5_03_train_production_model.py       # train production model from the config

# Start both APIs (two terminals)
# Terminal 1: baseline API on port 8000
python p3_02_inference_api_baseline.py

# Terminal 2: tuned API on port 8001
python p5_04_inference_api.py

# Terminal 3: run the test clients
python p3_03_inference_test_baseline.py    # hits port 8000
python p5_05_inference_test.py              # hits port 8001

What You Should See¶

Send the SAME 3 transactions to both APIs. Watch what flips.

The first row is the whole point of this section. The borderline case that the baseline lets through is exactly the kind of fraud the tuned model was built to catch. The cost: more false alarms on legitimate transactions - which the Net Benefit math already proved is the right trade.

The exact probabilities depend on the trained model, so your numbers may differ slightly. The pattern is stable: tuned >= baseline on every row, and the borderline row flips from LEGIT to FRAUD.

Test in Browser (optional)¶

Open both UIs side by side:

Or use the Swagger docs:

Manual curl Test (Tuned API)¶

curl -X POST http://127.0.0.1:8001/inference \
  -H "Content-Type: application/json" \
  -d '{
    "transaction_amount": 50.00,
    "transaction_hour": 14,
    "days_since_last_txn": 1,
    "avg_transaction_amount": 75.00,
    "merchant_category": "grocery",
    "card_present": "yes",
    "international": "no",
    "transaction_count_24h": 2
  }'

Expected response (the borderline grocery case):

{
  "prediction": "FRAUD",
  "probability": 0.6060,
  "threshold": 0.5,
  "risk_score": "HIGH",
  "confidence": 0.2120,
  "model_name": "p5_03_production",
  "message": "..."
}

The Pedagogical Point¶

Section 07 picked the winning model on offline data. Section 08 proves the win shows up the moment you put that model behind an HTTP endpoint:

Same 8 input fields  →  Two APIs  →  Two different decisions  →  +$10,925 Net Benefit

That's the whole MLOps deploy story in one screenshot. From here on, every section adds the tooling needed to do this kind of swap safely at scale (DVC for data versioning, MLflow for experiment tracking, Kubernetes for serving, CI/CD for promotion, Kubeflow for orchestration).

Complete Pipeline So Far¶

07 - Hyperparameter Tuning
